In this episode we go in detail on bootmod3 data logging! We will try to answer all of your questions related to this topic. That being said, go grab a coffee or popcorn since this episode is slightly longer than the other ones!
In this episode we will show you different ways you can connect to your vehicle! Most importantly we will finally introduce our latest and greatest Wireless connection method for your BMW F and G series vehicles and 2020+ Toyota Supra, the all new bootmod3 Wireless Adapter!
bootmod3 WiFi adapter is fully designed in-house by our engineers, built with the highest quality parts and modern chipset. It achieves perfect reliability and is the quickest adapter currently offered on the market.

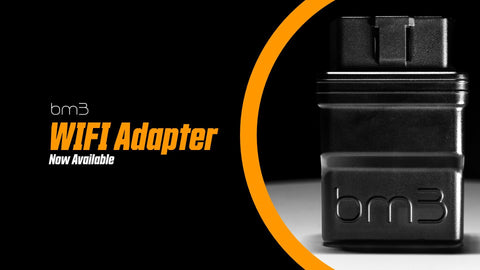

Introducing the latest and greatest Wireless connection method for your BMW F and G series vehicles and the 2020+ Toyota Supra, the all new bootmod3 Wireless Adapter.
bootmod3 WiFi adapter is fully designed in-house by our engineers, built with the highest quality parts and a modern chipset. It achieves perfect reliability and is the quickest adapter currently offered on the market.
Features:
Fastestflash times over ENET and CANBUS
Reliableand consistent connectivity
Wireless ENETsupport for BMW F and G series vehicles and 2020+ Toyota Supra
Wireless CANBUSSupport
Unlike generic WiFi adapters, our adapter allows full flashing of transmission on GEN2 BMW and 2020+ Toyota Supra removing need for additional WiFi adapters or DCAN cables
V3 Version ONLY - NO ALARMSif left plugged in (BMW G series vehicles and Toyota Supra)
Entersultralow power modeif left plugged in consuming just ~20mA
OTA updatesthrough the new bootmod3 app
Firmware fully extensible for additional flash and diagnostic protocols for future connectivity support
V2A versionof the adapter will trigger alarm on G series vehicles and 2020+ Toyota Supra. It is a lower cost option for those that don't mind unplugging their adapter after use
Manual Toggle switchto fully power down adapter
Small form factor, considerably smaller than generic WiFi ENET adapters
No VIN locking, can be used on multiple vehicles
Vehicles supported:
All BMW F and G series vehicles
2020+ Toyota Supra (A90 A91)
Additional 3rd Party applications supported:
ISTA / ESYS
XHP / xDelete
Bimmercode / Bimmerlink
...and other apps requiring ENET support
When connected on iOS, copy your WiFi settings from Automatic to Manual and leave the Router field empty. This leaves your Mobile data connection active while connected with the vehicle. For additional connectivity information and troubleshooting refer to thisConnectivity Guide.
In this episode we go through how to get on board with bootmod3 by getting your software license, how to choose OTS maps and request and build a custom map with your favourite bootmod3 tuner.
Demos on this A90 Supra show our CustomROM update for the Supra and GEN2 B58 vehicles which is coming soon including Femto unlock DME cars without a need to clone your DME.
bootmod3 is a cloud based tuning platform and as such provides for tuning across the largest number of operating systems and devices on the market today. You can flash using an iOS or Android device, macOS or Windows laptop.
Depending on which of these devices you may be using there are recommendations in terms of connectivity.
WiFi as well as direct ENET cable connection options are available.
WiFi is the most straight forward way and using the BM3 WiFi Adapter is the most recommended option on iOS / iPadOS. Once connected over WiFi, copy paste your network settings and change the settings to 'Manual' IP address and enter them on your phone. As long as you keep using the BM3 WiFi Adapter you'll never need to change these settings again and your connection will come up almost instantly.
Key things to note for iOS / iPad connections over WiFi:
Turn off Bluetooth and CarPlay so they don't interfere with your WiFi connection. iOS will attempt to drop your WiFi connection to the car and switch it over to CarPlay and you'll be wondering why you're seeing vehicle not detected in the app.
After connecting to the BM3 WiFi Adapter, ensure that your phone keeps the WiFi connection active and doesn't drop and connect over to your car's CarPlay WiFi instead.
Change WiFi Network settings when connected from Automatic to Manual keeping theIP and Netmask same but leaving the Router blank
iOS / iPadOS - ENET Cable with an adapter
ENET direct cable connection is also supported. However, you have to keep in mind that cables and ethernet adapters can be faulty out there. In addition, you have to make sure you're using an Apple MFI certified ethernet adapter for your iPhone/iPad. Suggestion is to stick to adapters purchased at the Apple Store (i.e. Belkin brand).
Key things to note for iOS / iPad ENET Cable connections and ENET cable to phone adapters:
Get a Belkin ethernet to lightning adapter for your ENET cable. It is Apple MFI certified.
*** If you'll use a different ENET adapter with your iOS / iPadOS device, make sure it is Apple MFI Certified ***
Starting with iOS 15, Apple made changes to iOS to only allow connections from MFI certified adapters. If you're using a non-MFI certified adapter, your connection will be very spotty.
Your cable will allow a connection to happen, and 10 seconds later drop it leaving you wondering why you're seeing vehicle not detected message in the app, or worse, drop mid flash leaving you stuck trying to recover from a failed flash until you get an MFI Certified adapter or switch over to a laptop to recover.
You can check this in your iPhone / iPad Settings -> Network
Turn off Bluetooth and CarPlay so they don't interfere with your ENET connection. iOS will attempt to drop your ENET cable connection to the car and switch it over to CarPlay and you'll be wondering why you're seeing vehicle not detected message in the app.
Change Network settings when connected from Automatic to Manual keeping the IP and Netmask same but leaving the Router blank
WiFi is the most straight forward way and using the BM3 WiFi Adapter is the most recommended option on Android. Once connected over WiFi, copy paste your network settings and change the settings to 'Manual' IP address and enter them on your phone. As long as you keep using the BM3 WiFi Adapter you'll never need to change these settings again and your connection will come up almost instantly.
Key things to note for Android connections over WiFi:
Android will drop your internet (mobile data) connection when connected to the BM3-NET WiFi Adapter. You will lose your phone's mobile data internet connection.
VERY IMPORTANT: Log in once and download any maps you're looking to flashBEFOREconnecting with your vehicle. Then, connect to BM3-NET WiFi and flash.
When logging, your logs will be stored on the phone. Once the app reconnects to the internet, all your stored logs will get uploaded to your cloud account automatically.
DO NOT enable Mobile Data for the bootmod3 app if using WiFi as the app will not use the WiFi connection and the app will not detect the vehicle.
Android - ENET Cable with an adapter
ENET direct cable connection is also supported on Android. Keep in mind that cables and ethernet adapters can be faulty out there so getting a reputable brand of an adapter (Belkin) and ENET cable from a reputable source is important.
Key things to note for Android Cable connections and ENET cable to phone adapters:
Before connecting over the ENET cable to the vehicle, log into the bootmod3 app and configure / download any maps you'd want to flash. Once ready, connect over ENET to the vehicle and flash away, use the dashboard, etc.
Android will drop your mobile data connection when connected to the car over WiFi by default. If you'd like to keep your internet connection active while connected to the vehicle your Android device must support enabling mobile data tethering.
Android 11+ devices: Enable Mobile Tethering under Settings so your internet connection and vehicle connection are both active when using the bootmod3 app.
Android 10 and older devices: Enable Mobile data for the bootmod3 app under Settings. It may not be possible to enable both WiFi and Mobile data on some older Android devices. If this is the case with your device then proceed as in Step 1 above
General Advice for ENET Cable connections
If you've used a WiFi adapter on your car first and then try using an ENET cable connection after (e.g. to use a laptop) you may experience no connectivity unless the vehicle is locked and left to sleep for over an hour. To speed up the reconnect with cable process, pull the battery ground cable off for 3 minutes and reconnect it. This will reset network settings previously set by your WiFi adapter and allow you to use your ENET cable connection again.
In summary:
You cannot quickly switch from a WiFi connection over to an ENET cable due to networking changes that happen on your vehicle's internal network gateway. Quickest way to get your ENET cable connection to connect again after using WiFi is to pull your battery ground off for 3 minutes which will clear your previously stored network settings and allow the vehicle to connect over an ENET cable.
Windows / macOS ENET Cable Connections
On Windows you want to disable your Windows Defender or Firewall and/or any Network Intrusion software otherwise bootmod3 app traffic will be blocked. If tech savvy, you can add exception rules to your Windows Defender/Firewall for the bootmod3 app and leave it turned on.
On macOS, there should be no issues by default, but if experiencing any, check your Firewall settings and either disable them or, if tech savvy, add exception rules to your firewall for the bootmod3 app.
Gen1 G-series B58 CustomROM support is now out! All the features have been incorporated that are supported across other vehicle models/engine types. Let's see these cars moving!
We're really excited to finally be able to offer our PTF Race Intercooler and Charge Pipe Kit to our BMW F-series customers along with FREEshipping in the USA and Canada.

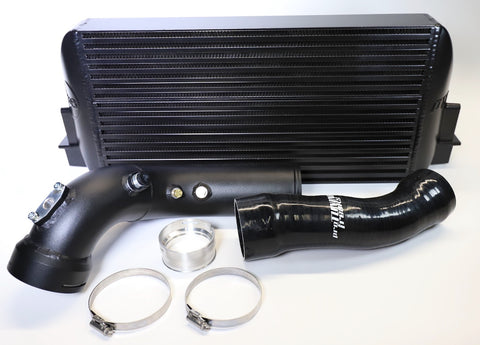

PTF Race Intercooler
The first and key hardware upgrade for all tuned BMW F series vehicles with N13, N20/N26 and N55 engines is the front mounted air to air intercooler.
Raising boost past stock on the OEM intercooler results in the DME (engine computer) to reduce power by reducing ignition timing due to increases in IAT (intake air temperature) and associated knock levels.
This PTF Race Intercooler featuresover twice the internal volume compared to the stock intercoolerwhile alsooutflowing the stock unit by almost 20%. Intercooler features 9 charge rows in the lower section and 6 in the top stepped portion along with end tanks that have been CFD flow analyzed and made to include avane to efficiently direct airflowinto its high quality core.
PTF Race Intercooler fitment is confirmed on the following BMW F-series vehicles:
BMW 1-Series F20 F21 Model years: 2010-2018 Model: 114i, 116i, 118i, 125i, M135i (including x-drive models)
BMW 2-Series F22 F23 Model years: 2012-2018 Model: 218i, 220i, 228i, 230i, M235i (including x-drive models)
BMW 2-Series F87 Model years: 2015-2018 Model: M2
BMW 3-Series F30 F31 F34 Model years: 2011-2018 Model: 316i, 320i, 328i, 335i (including x-drive models)
BMW 4-Series F32 F36 Model years: 2012-2018 Model: 418i, 420i, 428i, 430i, 435i (including x-drive models)
PTF Charge Pipe Kit
One of the first and key hardware upgrades for all tuned BMW F series N55 vehicles is the charge pipe. OEM plastic can have issues handling higher boost levels and deteriorates over time breaking at the intake manifold connection.
This charge pipe kit consists of two main parts: 3" mandrel bent aluminum part that features 2 bungs (1/8th-27 NPT) for those looking to run methanol/water injection (blanking plugs included), along with a silicone piece with 4 layers of polyester/aramid reinforcement made to handle high temperatures and pressures.
Parts included in the kit:
Aluminum pressure pipe
Silicone hose
CNC machined hose adapter for the host to intercooler hot-side outlet
Installation hardware for the pressure pipe
Two standard hose clamps
NOTE: OEM charge pipe o-ring should be re-used or replaced during installation on an as needed basis, NOT included.
Fitment for the following BMW F series vehicle models:
